DS-K3Y411X

Value Flap Barriers

Permissions validation and anti-tailgating
Remaining open/closed mode selectable.
The barrier will be open or stop working when people are nipped.
Self-detection, Self-diagnostics, and automatic alarm .
Audible and visual alarm will be triggered when detecting intrusion, tailgating reverse passing, and climbing over barrier.
TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.
LED indicates the entrance/exit and passing status.
Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.

Description

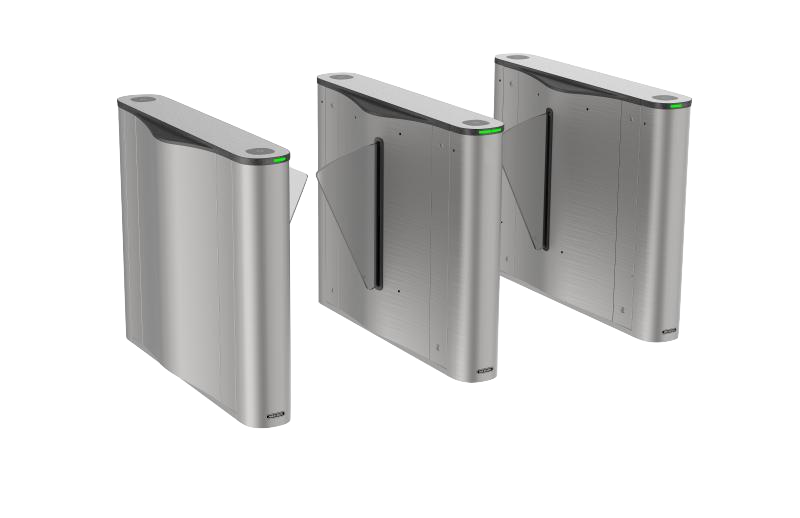

The DS-K3Y411X series flap barrier with two barriers and 6 pairs IR lights is designed to detect unauthorized entrance or exit. By adopting the flap barrier integrated with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc. It is widely used in attractions, stadiums, construction sites, residences, etc.

Screen : 2.4-inch LCD screen
Fingerprint Module : Optical fingerprint module
Audio output: 1 loudspeaker, 1 buzzer
Card type: Mifare 1 card
Card reading distance : 0 to 5 cm
Fingerprint comparing mode: 1:1 and 1:N
Power supply: 5 VDC/1A
