DS-K3BG501

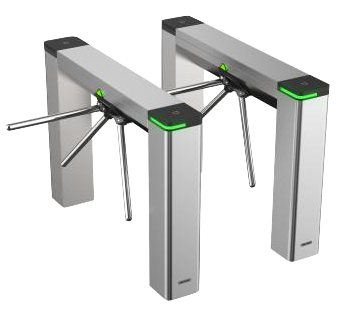

Tripod Turnstile

TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak
Barrier open/closed, free accessing, forbidden mode are selectable
Bidirectional (Entering/Exiting) lane
Remote control and management
LED indicates the entrance/exit and passing status
Fire alarm passing: When the fire alarm is triggered, the barrier will be dropped automatically for emergency evacuation.
Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration

Description

The DS-K3G501 series tripod barrier is designed to detect unauthorized entrance or exit. By adopting the turnstile integratedly with the access control system, person should authenticate to pass through the lane via presenting IC or ID card, scanning QR code, etc. It is widely used in attractions, stadiums, construction sites, residences, etc.

Screen : 2.4-inch LCD screen
Fingerprint Module : Optical fingerprint module
Audio output: 1 loudspeaker, 1 buzzer
Card type: Mifare 1 card
Card reading distance : 0 to 5 cm
Fingerprint comparing mode: 1:1 and 1:N
Power supply: 5 VDC/1A
