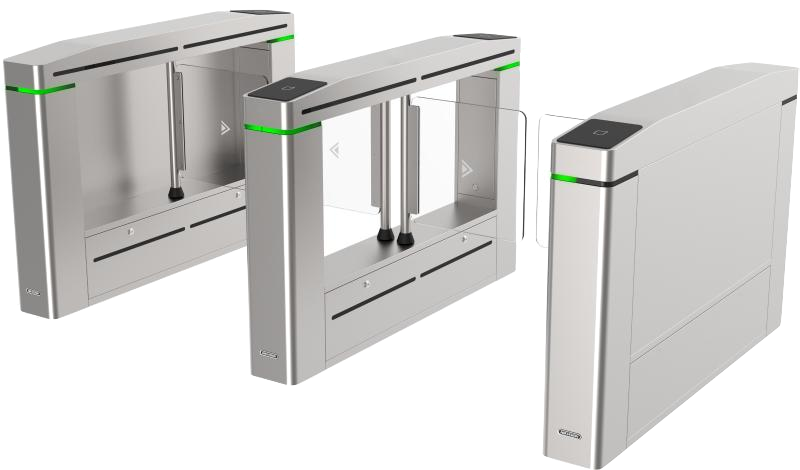

DS-K3B601

Pro Series Swing Barrier

12 pairs of IR light detectors: Permissions validation and anti-tailgating
LED light indicates passing direction
Audible and visual nipping alarm: The barrier will stop working for a period of time when detecting obstruction when open/close barrier
Self-detection, Self-diagnostics, and automatic alarm
Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered
Barrier is in free status when powering down

Description

The DS-K3B601 series swing barrier with 12 pairs of IR lights is designed to detect unauthorized entrance or exit. By adopting the swing barrier integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc. It is widely used in attractions, stadiums, construction sites, residences, etc.

Screen : 2.4-inch LCD screen
Fingerprint Module : Optical fingerprint module
Audio output: 1 loudspeaker, 1 buzzer
Card type: Mifare 1 card
Card reading distance : 0 to 5 cm
Fingerprint comparing mode: 1:1 and 1:N
Power supply: 5 VDC/1A
