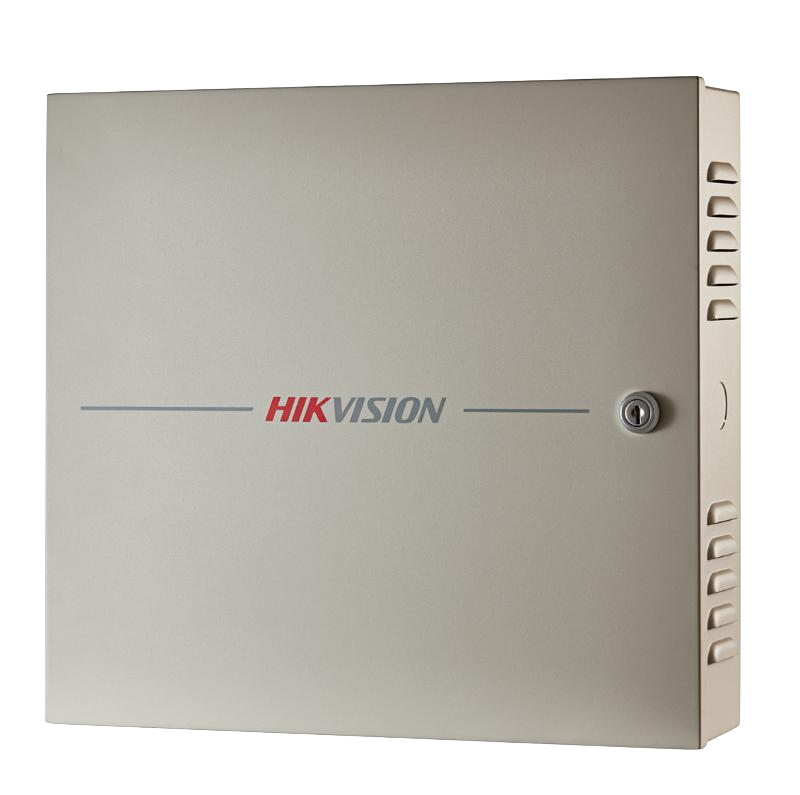

DS-K2600T

Pro Series Access Controller

Supports anti-passback function, multi-card function, first person function, super card and super password function
Online upgrade function and online remote control of the doors
Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blocklist alarm and alarm for invalid card swiping attempts alarm)
Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
Supports time synchronization via NTP, manual or automatic method
Supports standby battery
Data can be permanently saved when the access controller is powered off
Supports TCP/IP communication, EHome 5.0, and ISAPI protocol. The communication data is specially encrypted to relieve the concern of privacy leak

Description

The DS-K2600T series access controller contains network and RS-485 interface, which supports TCP/IP and RS-485 communication protocols. The communication data is encrypted to improve the security of the system. The controller also supports offline operation and is designed with tamper-proof switch.

Screen : 2.4-inch LCD screen
Fingerprint Module : Optical fingerprint module
Audio output: 1 loudspeaker, 1 buzzer
Card type: Mifare 1 card
Card reading distance : 0 to 5 cm
Fingerprint comparing mode: 1:1 and 1:N
Power supply: 5 VDC/1A
